Garmin GPSMAP 7616 LCD Display Touch Screen Replacement
Garmin GPSMAP 7616 LCD Display Touch Screen Replacement
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Orders are shipped within 36 business hours.
Estimated delivery:
• USA: 7–15 business days (tracking included)
• UK, AU, CA & Western Europe: 15–25 business days
• Russia: 7–15 business days
• Other regions: 20–30 days
Note: International packages may be declared as a gift with a lower value. For more details, check our Shipping Policy.
Warranty Coverage
Warranty Coverage
All products include a 3-month warranty and free lifetime technical support. However, Please note that our warranty covers only defects or quality issues.
Tax Information
Tax Information
Although we have made every effort to prepay taxes on behalf of our customers, certain countries and regions do not permit us to prepay duties (including GST) on your behalf. If you have any questions regarding customs clearance or require assistance in minimizing your tax burden, please contact our online customer support team; we are dedicated to providing you with full assistance.
- Fres Shipping
- Hassle-Free Returns
- 3-month Warranty
Product Description
Product Overview

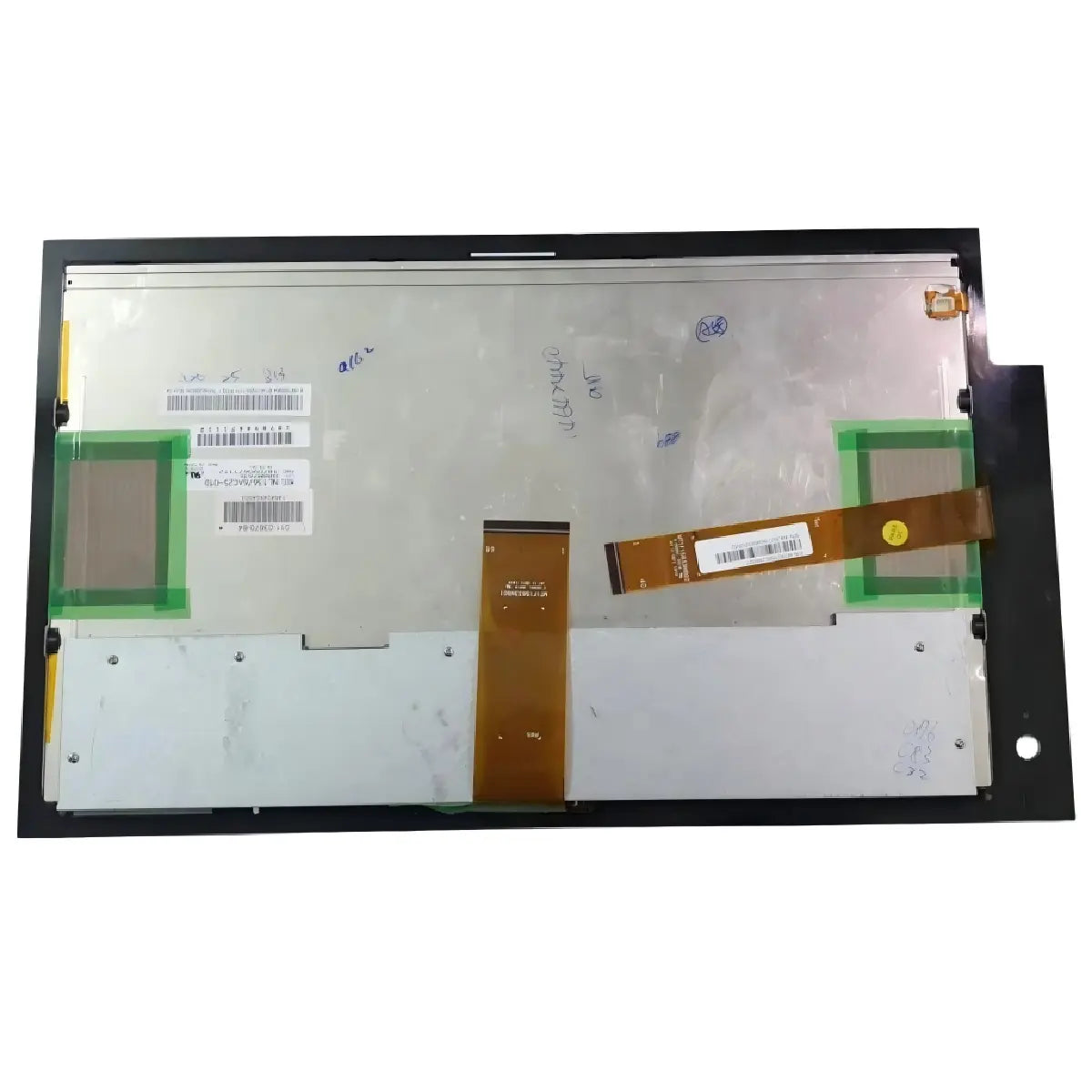

This is an OEM (original equipment manufacturer) replacement LCD display with integrated touchscreen, designed for the Garmin GPSMAP 7616 marine chartplotter. The part is graded 90–100% New condition and has been fully tested prior to listing. It is intended to replace an original display that is cracked, has an unresponsive touch panel, shows dead pixels, or displays visual defects such as lines, discoloration, or no image.
Available in two versions:

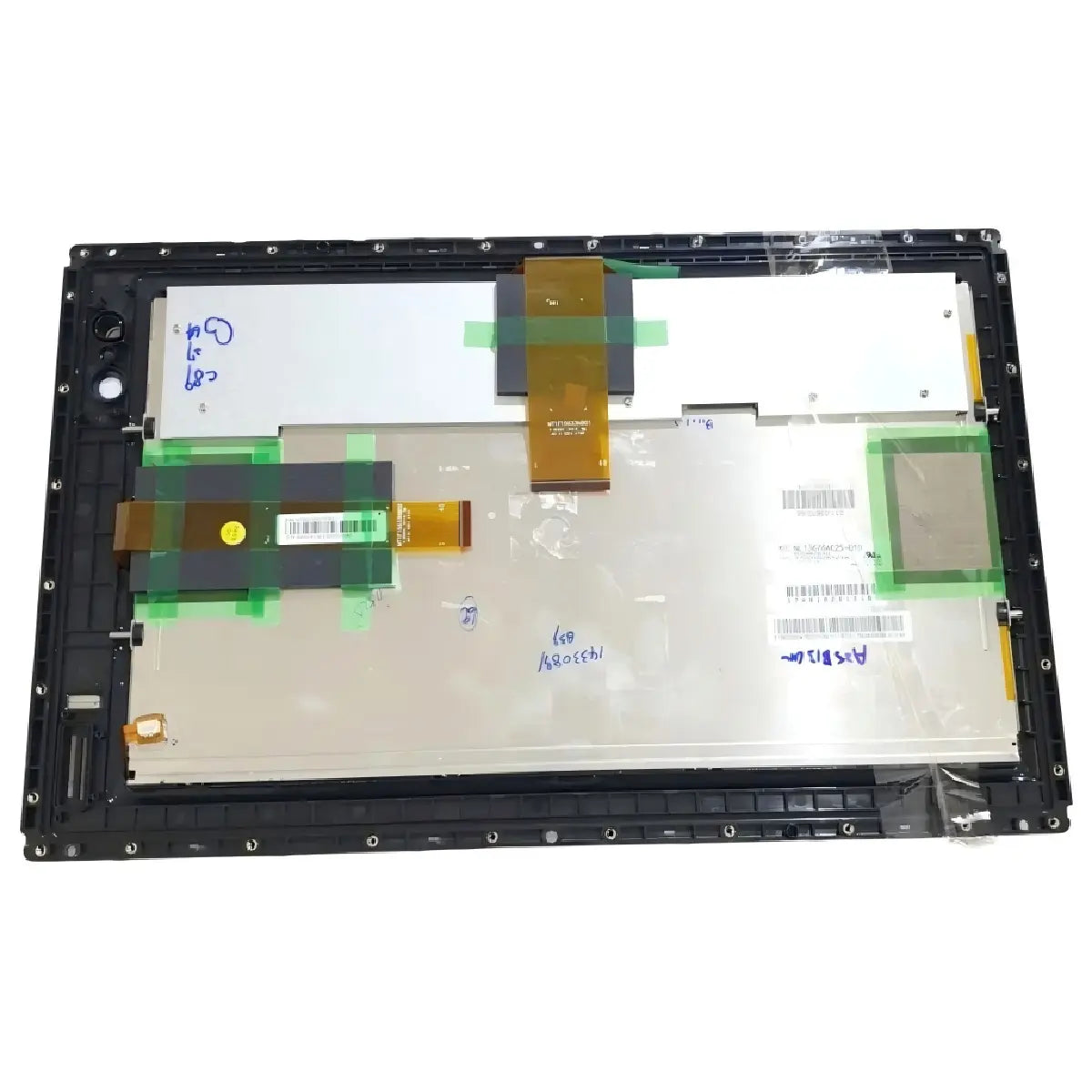

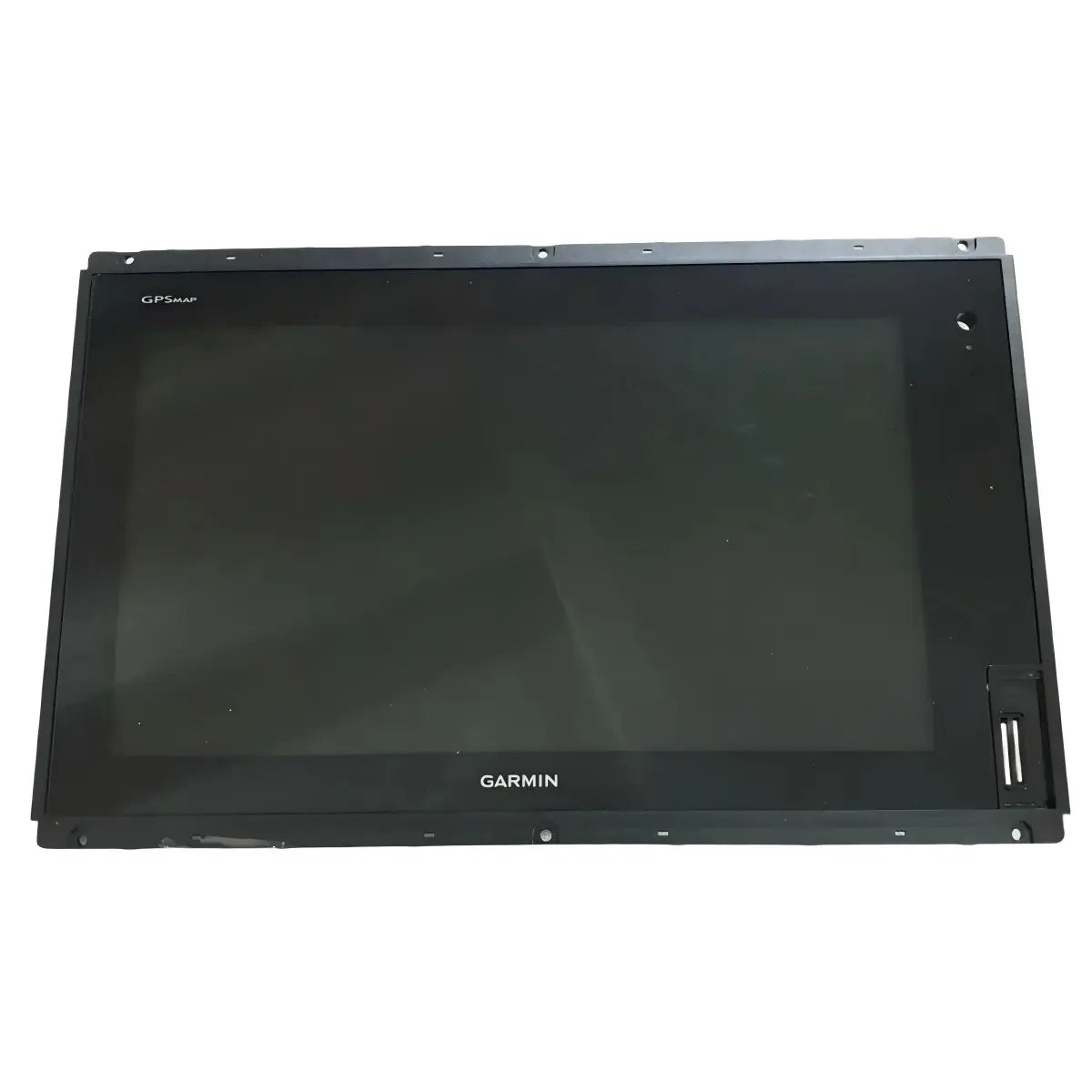

- Screen with frame — $1,600

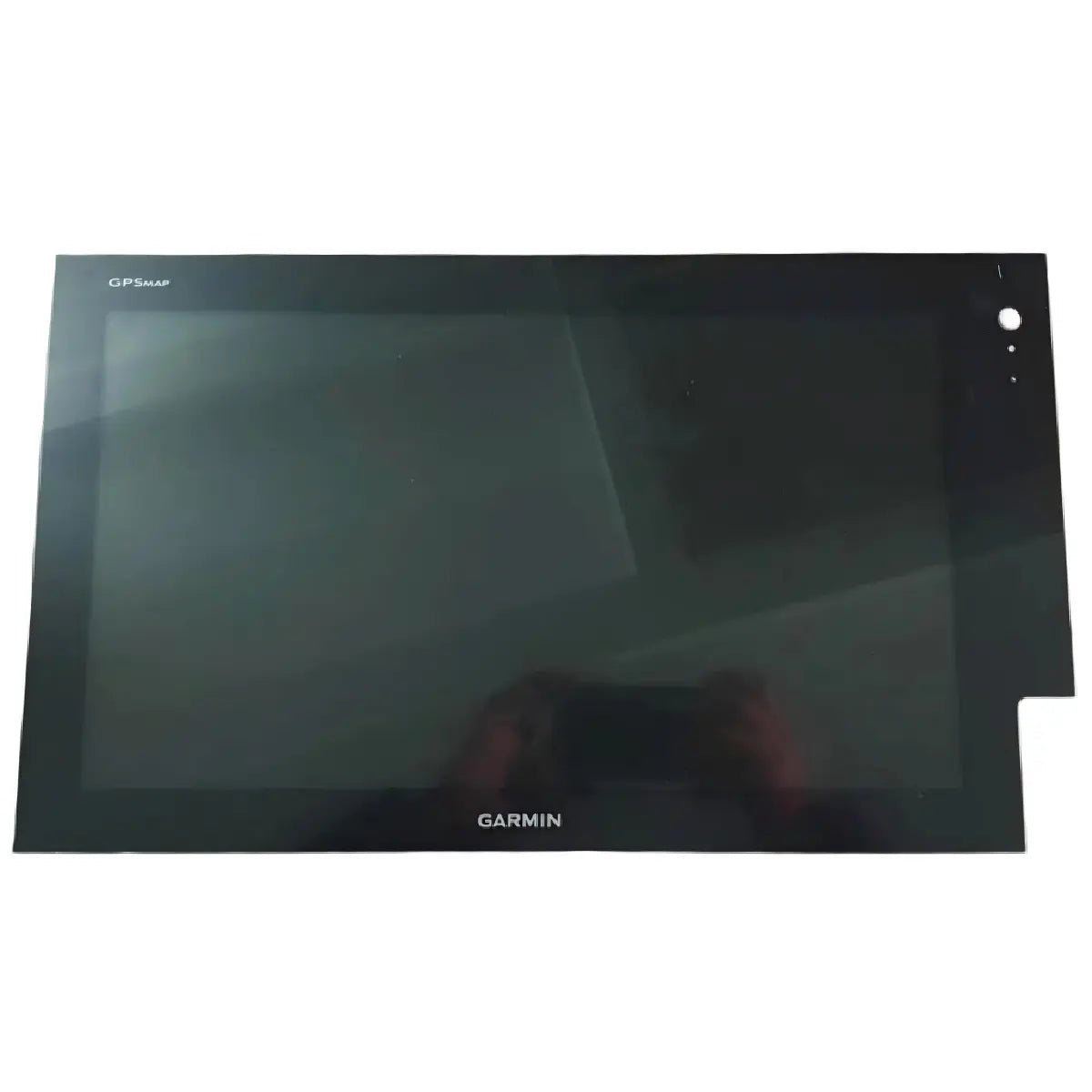

- Screen only (no frame) — $1,500
Brand: Garmin
Product family: GPSMAP
Exact model: 7616
Device type: Marine chartplotter
Part type: OEM LCD display + touchscreen digitizer, available with or without frame
Condition: 90–100% New, OEM original, fully tested
Compatibility
Compatible:
- Garmin GPSMAP 7616
Not confirmed:
- Garmin GPSMAP 7616xsv — shares the same screen size category, but interchangeability with the non-xsv 7616 has not been confirmed.
- Garmin GPSMAP 8616 / 8616xsv — a newer generation with different resolution specifications; not compatible.
- Other GPSMAP 7000-series units (7610, 7612, 7615, etc.) — different screen sizes, not assumed compatible.
Not compatible:
- Any non-GPSMAP Garmin device.
Common Replacement Scenarios
- Cracked or shattered outer glass/touch panel
- Touchscreen unresponsive or registering incorrect touches
- Dead pixels or discolored sections of the display
- Display shows no image despite the unit powering on
- Physical impact damage common on helm-mounted marine units exposed to spray, vibration, and sun exposure
Key Features
- OEM original LCD + touchscreen assembly for Garmin GPSMAP 7616
- Fully tested prior to listing, graded 90–100% New condition
- Available as screen-only or screen-with-frame, depending on repair needs
- 16.1" diagonal multi-touch widescreen display
Specifications
| Spec | Value |
|---|---|
| Brand | Garmin |
| Compatible Model | GPSMAP 7616 |
| Part Type | OEM LCD Display + Touchscreen |
| Screen Size | 16.1" diagonal |
| Resolution | 1280 x 800 (WXGA) |
| Display Type | Multi-touch widescreen LCD |
| Condition Grade | 90–100% New, OEM, fully tested |
| Weight | Approx. 2135g |
| Frame/Bezel | Optional — available with or without |
Installation Notes
Replacing this component typically involves device disassembly, handling of a flex cable/ribbon connector, and re-sealing to maintain waterproof integrity. If ordering the screen-only version, the original frame/bezel will need to be transferred from your damaged unit. Given the large display size and precision touch panel, professional installation is strongly recommended.
What Is Included
- 1x OEM LCD display and touchscreen assembly (with or without frame, per selected option)
- Fully tested prior to shipping
Buying Checklist
- Confirm your unit is the GPSMAP 7616, not the 7616xsv or another GPSMAP model.
- Decide whether you need the screen-only or screen-with-frame version, based on the condition of your original frame/bezel.
- Compare the connector and cable layout of your original damaged part before ordering.
- Confirm with the seller whether waterproof sealing is restored or needs additional sealant during installation.
FAQ
Q: Is this an OEM (original) part?
A: Yes, this is an OEM original display assembly, graded 90–100% New condition and fully tested prior to listing.
Q: Should I choose the screen-only or screen-with-frame version?
A: If your original frame/bezel is undamaged and can be reused, the screen-only version is sufficient. If the frame is cracked, warped, or damaged, choose the screen-with-frame version.
Q: Is this compatible with the GPSMAP 7616xsv?
A: Not confirmed. While both use the same screen size category, interchangeability between the xsv and non-xsv versions has not been verified.
Q: Is this compatible with the GPSMAP 8616 or 8616xsv?
A: No. Those are a newer generation with different display specifications and are not compatible with this part.
Q: Does installation require professional repair skills?
A: Professional installation is strongly recommended due to the large display size, flex cable handling, and the need to maintain the unit's waterproof rating.
Q: What should I check before ordering?
A: Confirm your exact model is GPSMAP 7616, and choose the correct version (with or without frame).
Package Include
- Repair parts are shown in the picture.
Product Inspection
- Display Screen Check
- Cable Connection Check
- Frame Waterproof Test
- Contact Oxidation Inspection
Ensure it arrives safely
We will first wrap your spare parts in bubble wrap, then put them in a cardboard box, and finally secure them with tape.
You May Curious About
Our replacement parts for Garmin are original / OEM (original or original pull-off).
Huayuxt will specify in the title which Garmin product model this repair part is suitable for. If you still have questions, you can contact our online customer service directly, and our professional customer service team will answer your questions.
We offer unlimited free remote video guidance to customers who purchase repair parts from our website, and paid guidance to other customers. However, our website has a wealth of free repair blogs and videos to help you solve most repair problems.
Although we invest significant effort into our products, we understand that you may sometimes regret your purchase or accidentally buy items you no longer need. Huayuxt offers a convenient return policy and is committed to finding solutions that are beneficial for both parties. Please review the return policy.
We typically offer a three-month warranty on our products. During this period, if any quality issues arise, we will replace the repair parts free of charge.
If you need to purchase a large quantity of items at one time, please contact me first. I will offer you highly competitive wholesale prices.
We will ship your order within 36 hours of you placing it and provide you with a tracking number and website for inquiry.
