Product Description
Product Overview

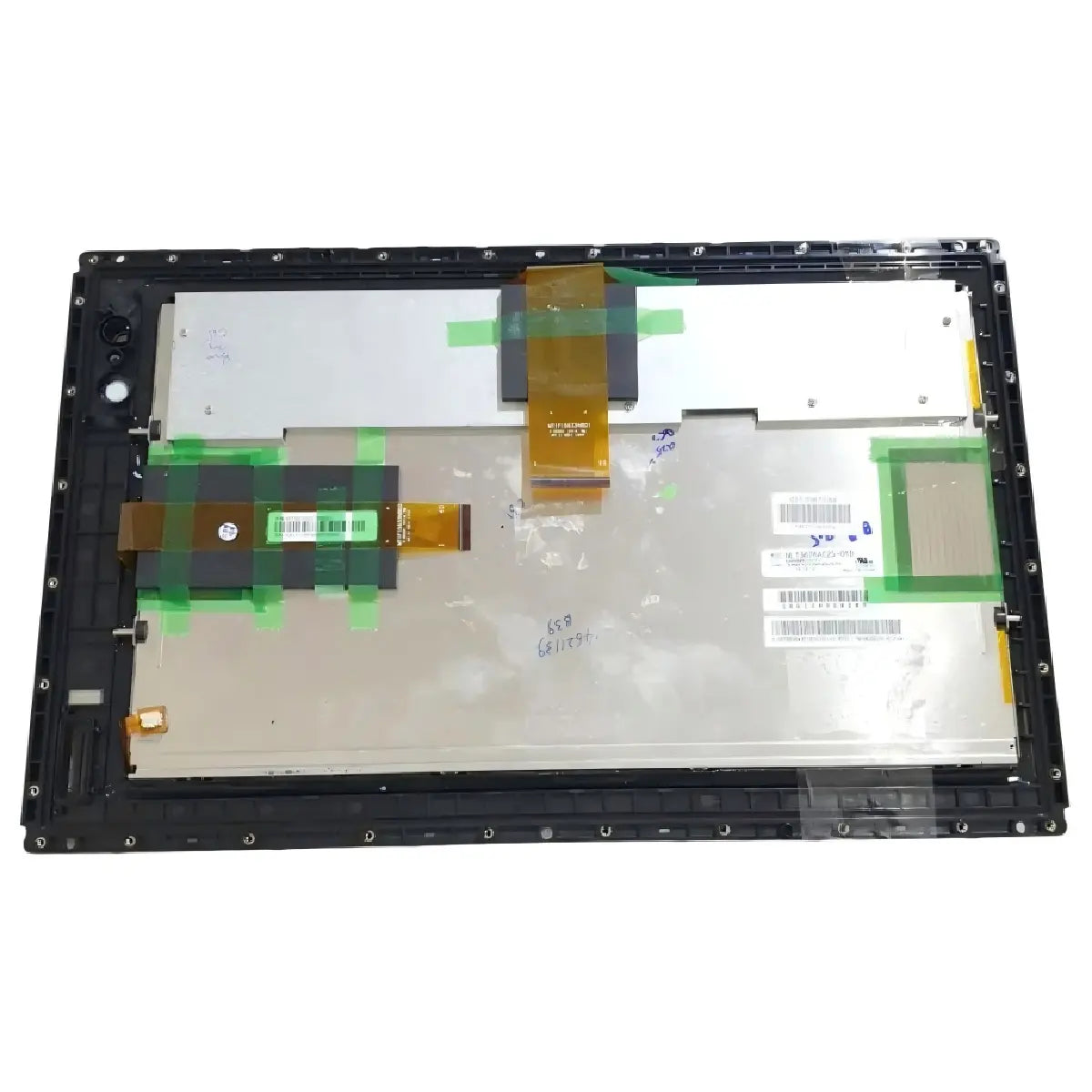

This is an OEM (original equipment manufacturer) replacement LCD display with integrated touchscreen and frame, designed for the Garmin GPSMAP 7616xsv marine chartplotter/sonar combo unit. The part is graded 90–100% New condition and has been fully tested prior to listing. It is intended to replace an original display that is cracked, has an unresponsive touch panel, shows dead pixels, or displays visual defects such as lines, discoloration, or no image.
This part is available with frame/bezel only.
Brand: Garmin
Product family: GPSMAP
Exact model: 7616xsv
Device type: Marine chartplotter / sonar combo
Part type: OEM LCD display + touchscreen digitizer with frame
Condition: 90–100% New, OEM original, fully tested
Compatibility
Compatible:
- Garmin GPSMAP 7616xsv
Not confirmed:
- Garmin GPSMAP 7616 (non-xsv) — screen size may be shared, but sonar hardware differs; interchangeability not confirmed.
- Garmin GPSMAP 8616 / 8616xsv — a newer generation with different resolution specifications; not compatible.
- Other GPSMAP 7000-series units (7610, 7612, 7615, etc.) — different screen sizes, not assumed compatible.
Not compatible:
- Any non-GPSMAP Garmin device.
Common Replacement Scenarios
- Cracked or shattered outer glass/touch panel
- Touchscreen unresponsive or registering incorrect touches
- Dead pixels or discolored sections of the display
- Display shows no image despite the unit powering on
- Physical impact damage common on helm-mounted marine units exposed to spray, vibration, and sun exposure
Key Features
- OEM original LCD + touchscreen assembly with frame for Garmin GPSMAP 7616xsv
- Fully tested prior to listing, graded 90–100% New condition
- 16.1" diagonal multi-touch widescreen display
Specifications
| Spec | Value |
|---|---|
| Brand | Garmin |
| Compatible Model | GPSMAP 7616xsv |
| Part Type | OEM LCD Display + Touchscreen + Frame |
| Screen Size | 16.1" diagonal |
| Resolution | 1280 x 800 (WXGA) |
| Display Type | Multi-touch widescreen LCD |
| Condition Grade | 90–100% New, OEM, fully tested |
| Weight | Approx. 2135g |
Installation Notes
Replacing this component typically involves device disassembly, handling of a flex cable/ribbon connector, and re-sealing to maintain waterproof integrity. Given the large display size and precision touch panel, professional installation is strongly recommended.
What Is Included
- 1x OEM LCD display and touchscreen assembly with frame
- Fully tested prior to shipping
Buying Checklist
- Confirm your unit is the 7616xsv specifically, not the non-xsv 7616 or a GPSMAP 8000-series model.
- Compare the connector and cable layout of your original damaged part before ordering.
- Confirm with the seller whether waterproof sealing is restored or needs additional sealant during installation.
FAQ
Q: Is this an OEM (original) part?
A: Yes, this is an OEM original display assembly, graded 90–100% New condition and fully tested prior to listing.
Q: Does it include the frame?
A: Yes, this listing includes the frame/bezel along with the LCD and touchscreen.
Q: Is this compatible with the GPSMAP 8616 or 8616xsv?
A: No. Those are a newer generation with different display specifications and are not compatible with this part.
Q: Does installation require professional repair skills?
A: Professional installation is strongly recommended due to the large display size, flex cable handling, and the need to maintain the unit's waterproof rating.
Q: What should I check before ordering?
Package Include
- Repair parts are shown in the picture.
Product Inspection
- Display Screen Check
- Cable Connection Check
- Frame Waterproof Test
- Contact Oxidation Inspection
